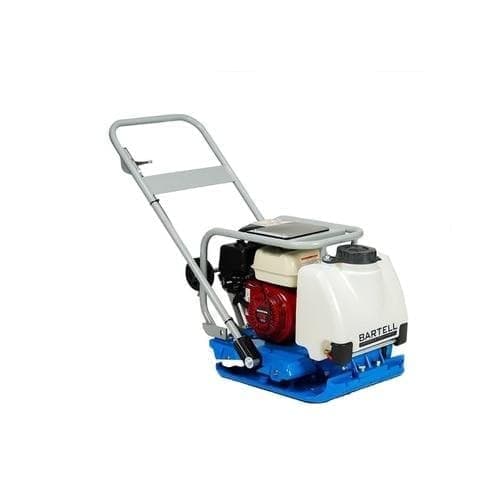

Bartell BCF1570H 21" x 20" Plate Compactor with Honda Gas Engine
Compaction - Compactors - Vibratory Plate

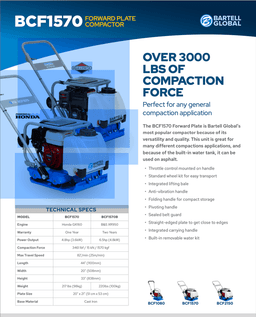

The BCF1570 Forward Plate is Bartell's most popular compactor because of its versatility and quality. This unit is great for many different compactions applications, and because of the built-in water tank, it can be used on asphalt.
Forward Compactor Features
Robust throttle controls - Why should you have to bend over and run next to your machine to make it stop? You'll find conveniently mounted throttle controls standard on every piece of compaction in our lineup
Retractable Wheel kits - make it much easier to move your equipment to the site. Flip them down and roll. They simply lock up when you don't need them
Lifting bales - Maybe your work site is far off the beaten path? Every plate has a robust lifting bale to make it easier to move your equipment when a wheel kit won't do
Close to the Edge - Need to compact close to an edge? You can get right up against it with our straight-edge plate design
Sealed belt guards - Sometimes a single rock is all it takes to throw a belt. Our new sealed cover design keeps rocks out and still cools properly
$125
Day
$500
Week
$1,500
Month
Specifications
Material
Asphalt, base material, stone, dirt
Overall Height
33"
Overall Length
44"
Overall Width
20"
Weight
210#
HP (kW)
4.8 (3.6)
Fuel
Gas
