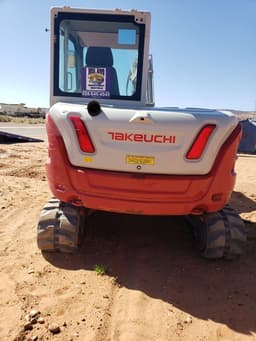

Takeuchi TB370 14K Excavator

Maximum Reach 21' 11.4" (6,690 mm) Maximum Reach at Ground Level 21' 6.4" (6,565 mm) Maximum Digging Depth 13' 4.7" (4,085 mm) Maximum Vertical Digging Depth 12' 6.2" (3,815 mm) Maximum Height of Cutting Edge 21' 0.7" (6,420 mm) Maximum Dumping Height 14' 11.0" (4,545 mm) Front Swing Radius 8' 5.5" (2,580 mm) Front Swing Radius with Boom Offset 6' 8.3" (2,040 mm) Slew Radius 4' 9.4" (1,455 mm) Transport Length 19' 5.2" (5,925 mm) Transport Height 8' 4.0" (2,540 mm) Upper Structure Overall Width 6' 10.5" (2,095 mm) Ground Clearance 13.2" (335 mm) Undercarriage Length 8' 5.4" (2,575 mm) Undercarriage Width 6' 10.7" (2,100 mm) Track Width (Rubber) 15.7" (400 mm) © 2022 Takeuchi US. | Terms and Conditions | Privacy | Cookies This link leads to the machine-readable files that are made available in response to the federal Transparency in Coverage Rule and includes negotiated service rates and out-of-network allowed amounts between health plans and healthcare providers. The machine readable files are formatted to allow researchers, regulators, and application developers to more easily access and analyze data.

OPERATING PERFORMANCE Operating Weight 14,850 lb (6,735 kg) Slew Speed 8.8 rpm (8.8 min-1) Travel Speed - Low Range 1.6 mph (2.5 km / hr) Travel Speed - High Range 2.9 mph (4.7 km / hr) Gradeability 30 deg Ground Pressure - Cab (Rubber) 5.4 psi (37.0 kPa) Max Bucket Breakout Force 14,613 lb (6,628 kg) Max Arm Digging Force 6,609 lb (2,998 kg) Traction Force 16,479 lb (7,475 kg) Boom Swing Angle (Left/Right) 79 deg / 51 deg
